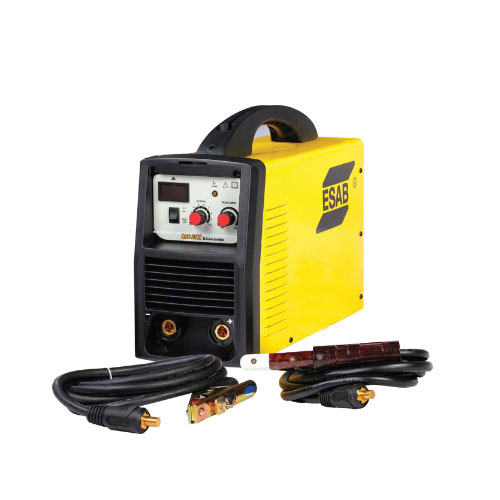

Arc 250i

Arc 250i

Heavy Duty Single Phase MMA Inverter

Heavy Duty Inverter

Arc 250i is a single phase inverter welding power source designed for light and heavy duty applications for
continuous electrode usage.

Designed for MMA electrodes upto 4.0mm size -MSGP, LH, Stainless steel and Cellulosic.
Wide mains voltage tolerance range 196V-264V.
Adjustable Arc force for Superior Arc control.
Digital Display for set current reference.
Ready to weld package with Electrode Holder and Earth Clamp

Industry

Category: Esab

Description

Mains Supply, V/Ph, Hz	230 ±15% / 1, 50
Input Power (Max), KVA	12
Output Current Range, A	30 – 250
Maximum Load at 60% Duty Cycle, A	250
Maximum Load at 100% Duty Cycle, A	194
Open Circuit Voltage, V	80
Efficiency	88%
Enclosure Class	IP21S
Insulation Class	H
Cooling	Forced Air
Dimensions, L x W x H, mm (with handle)	435 x 170 x 275
Weight, Kg	10.7
Recommended Diameter of Electrode for Welding, mm	Up to 4.0, occasionally 5.0
Standards of Conformity	EN 60974-1
